Length of Arc, Area of Sector, Area of Circle, Circumference of Circle

Except stated otherwise, use:

$ d = diameter \\[3ex] r = radius \\[3ex] L = arc\:\:length \\[3ex] A = area\;\;of\;\;sector \\[3ex] \theta = central\:\:angle \\[3ex] \pi = \dfrac{22}{7} \\[5ex] RAD = radians \\[3ex] ^\circ = DEG = degrees \\[7ex] \underline{\theta\;\;in\;\;DEG} \\[3ex] L = \dfrac{2\pi r\theta}{360} \\[5ex] \theta = \dfrac{180L}{\pi r} \\[5ex] r = \dfrac{180L}{\pi \theta} \\[5ex] A = \dfrac{\pi r^2\theta}{360} \\[5ex] \theta = \dfrac{360A}{\pi r^2} \\[5ex] r = \dfrac{360A}{\pi\theta} \\[7ex] \underline{\theta\;\;in\;\;RAD} \\[3ex] L = r\theta \\[5ex] \theta = \dfrac{L}{r} \\[5ex] r = \dfrac{L}{\theta} \\[5ex] A = \dfrac{r^2\theta}{2} \\[5ex] \theta = \dfrac{2A}{r^2} \\[5ex] r = \sqrt{\dfrac{2A}{\theta}} \\[7ex] Circumference\:\:of\:\:a\:\:circle = 2\pi r = \pi d \\[3ex] L = \dfrac{2A}{r} \\[5ex] r = \dfrac{2A}{L} \\[5ex] A = \dfrac{Lr}{2} $

Circle Theorems

(1.) The angle in a semicircle is a right angle (an angle of 90°).

(2.) Angles in the same segment of a circle are equal.
OR
Angles subtended by a chord of a circle in the same segment of the circle are equal.

(3.) The angle which an arc of a circle subtends at the center is twice the angle which the same arc of the circle subtends at the circumference.
OR
The measure of any angle inscribed in a circle is half the measure of the intercepted arc.

(4.) The sum of the interior opposite angles of a cyclic quadrilateral is 180°
OR
The interior opposite angles of a cyclic quadrilateral are supplementary

(5.) The exterior angle of a cyclic quadrilateral is equal to the interior opposite angle.

(6.) The radius of a circle is perpendicular to the tangent of the circle at the point of contact.
This implies that the angle between the radius of a circle and the tangent to the circle at the point of contact is 90°

(7.) Intersecting Tangents Theorem or Intersecting Tangent-Tangent Theorem and Angle of Intersecting Tangents Theorem
If two tangents are drawn from the same external point:
(a.) the two tangents are equal in length
(b.) the line joining the external point and the centre of the circle bisects the angle formed by the two tangents.
(c.) the line joining the external point and the centre of the circle bisects the angle formed by the two radii.

(8.) Alternate Segment Theorem
The angle between a tangent to a circle and a chord drawn from the point of contact, is equal to the angle in the alternate segment.

(9.) If a line drawn from the center of the circle bisects a chord, then:
(a.) it bisects its arc (the angle opposite the chord) and
(b.) it is perpendicular to the chord.

(10.) If a line drawn from the center of the circle is perpendicular to a chord, then:
(a.) it bisects the chord and
(b.) it bisects its arc (the angle opposite the chord).

(11.) Intersecting Chords Theorem
When two chords intersect, the product of the lengths of the segments of one chord is equal to the product of the lengths of the segments of the other chord.

(12.) Angle of Intersecting Chords Theorem
The angle formed when two chords intersect is equal to half the sum of the intercepted arcs.

(13.) Intersecting Secants Theorem or Intersecting Secant-Secant Theorem
In the intersection of two secants from the same exterior point:
the product: of the distance between the first point and the external point and the distance between the second point and the external point for the first secant is equal to the product of the distance between the first point and the external point and the distance between the second point and the external point for the second secant.
Alternatively, we can state it as: If two secant segments are drawn to a circle from an exterior point, then the product of the measures of one secant segment and its external segment is equal to the product of the measures of the other secant segment and its external segment.

(14.) Angle of Intersecting Secants (Inside the Circle) Theorem
The angle formed when two secants intersect inside a circle is equal to half the sum of the intercepted arcs.

(15.) Angle of Intersecting Secants (Outside the Circle) Theorem
The angle formed when two secants intersect outside a circle is equal to half the difference of the intercepted arcs.

(16.) Intersecting Secant-Tangent Theorem or Intersecting Tangent-Secant Theorem
In the intersection of a secant and a tangent from the same external point:
the product of the distance between the first point and the external point and the distance between the second point and the external point for the secant is equal to the square of the distance between the point of contant and the external point for the tangent.

(17.) Angle of Intersecting Secant-Tangent Theorem
The angle formed when a secant and a tangent intersect outside a circle is equal to half the difference of the intercepted arcs.

(1.) Number 1

In the diagram, P, Q, R and S are points on the circle centre K.
$\overline{KR}$ is a bisector of $\angle SRQ$
$\angle KSP$ = 41° and $\angle SKR$ = 80°
Find:
(a.) $\angle RQP$
(b.) $\angle SPQ$


$ \underline{\triangle KRS} \\[3ex] \angle KRS = \angle KSR = p ...\text{base angles of isosceles triangle} \\[3ex] \angle KRS + \angle KSR + \angle SKR = 180^\circ ...\text{sum of angles in a triangle} \\[3ex] p + p + 80 = 180 \\[3ex] 2p = 180 - 80 \\[3ex] 2p = 100 \\[3ex] p = \dfrac{100}{2} \\[5ex] p = 50 \\[3ex] \angle KRS = \angle KSR = 50^\circ \\[5ex] \angle RSP = \angle KSR + \angle KSP ...\text{diagram} \\[3ex] \angle RSP = 50 + 41 \\[3ex] \angle RSP = 91^\circ \\[5ex] (a.) \\[3ex] \underline{\text{Cyclic Quadrilateral RQPS}} \\[3ex] \angle RQP + \angle RSP = 180^\circ ...\text{interior opposite angles of a cyclic quad. are supplementary} \\[3ex] \angle RQP + 91 = 180 \\[3ex] \angle RQP = 180 - 91 \\[3ex] \angle RQP = 89^\circ \\[5ex] \angle KRS = \angle KRQ = 50^\circ ...\overline{KR} \text{ is a bisector of } \angle SRQ \\[5ex] \angle SRQ = \angle KRS + \angle KRQ ...\text{diagram} \\[3ex] \angle SRQ = 50 + 50 \\[3ex] \angle SRQ = 100^\circ \\[5ex] (b.) \\[3ex] \underline{\text{Cyclic Quadrilateral RQPS}} \\[3ex] \angle SPQ + \angle SRQ = 180^\circ ...\text{interior opposite angles of a cyclic quad. are supplementary} \\[3ex] \angle SPQ + 100 = 180 \\[3ex] \angle SPQ = 180 - 100 \\[3ex] \angle SPQ = 80^\circ $
(2.) Number 2

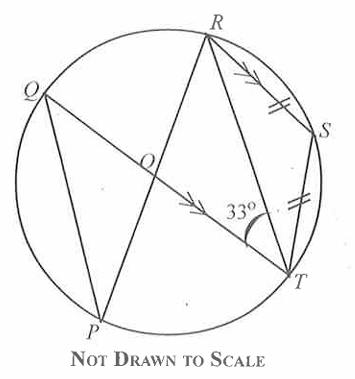

In the diagram PQRST is a circle with centre O.
POR and QOT are straight lines, $\overline{QT} || \overline{RS}$, $\angle RTQ = 33^\circ$ and $|\overline{RS}| = |\overline{ST}|$.
Find $\angle RST$


$ \underline{\text{Alternate angles are congruent}} \\[3ex] \angle TRS = \angle RTQ = 33^\circ \\[5ex] \underline{\text{Base angles of isosceles triangles are congruent}} \\[3ex] \angle TRS = \angle RTS = 33^\circ \\[5ex] \underline{\text{Sum of angles in a triangle}} \\[3ex] \angle RST + \angle TRS + \angle RTS = 180^\circ \\[3ex] \angle RST + 33 + 33 = 180 \\[3ex] \angle RST = 180 - 33 - 33 \\[3ex] \angle RST = 114^\circ $
(3.) Number 3

In the diagram, O is the centre of the circle XYZ.
$\angle ZXO = 34^\circ$ and $\angle XOY = 146^\circ$.
Find $\angle OYZ$


$ \underline{\triangle XOZ} \\[3ex] \angle XZO = \angle ZXO = 34^\circ ...\text{base angles of isosceles triangle} \\[5ex] \angle XOY = 2 * \angle XZY ...\text{central angle = twice the inscribed angle} \\[3ex] 146 = 2* \angle XZY \\[3ex] \angle XZY = \dfrac{146}{2} \\[5ex] \angle XZY = 73^\circ \\[3ex] \angle XZY = \angle XZO + \angle OZY ...\text{diagram} \\[3ex] 73 = 34 + \angle OZY \\[3ex] \angle OZY = 73 - 34 \\[3ex] \angle OZY = 39^\circ \\[3ex] \underline{\triangle YOZ} \\[3ex] \angle OYZ = \angle OZY = 39^\circ ...\text{base angles of isosceles triangle} $
(4.) Number 4

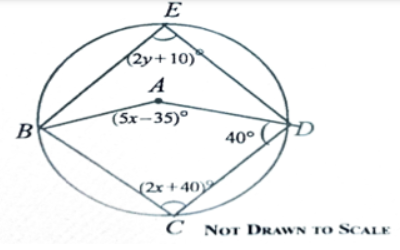

In the diagram, BCDE is a circle with centre A.
$\angle BCD = (2x + 40)^\circ$, $\angle BAD = (5x - 35)^\circ$, $\angle BED = (2y + 10)^\circ$ and $\angle ADC = 40^\circ$.
Find:
(a.) the values of x and y
(b.) $\angle ABC$


$ \text{Reflex }\angle BAD = 360 - (5x - 35) ...\text{angles at a point} \\[3ex] = 360 - 5x + 35 \\[3ex] = 395 - 5x \\[5ex] (a.) \\[3ex] \text{Reflex }\angle BAD = 2 * \angle BCD ...\text{central angle = twice the inscribed angle} \\[3ex] 395 - 5x = 2(2x + 40) \\[3ex] 395 - 5x = 4x + 80 \\[3ex] 4x + 5x = 395 - 80 \\[3ex] 9x = 315 \\[3ex] x = \dfrac{315}{9} \\[5ex] x = 35^\circ \\[5ex] \text{Obtuse }\angle BAD = 5x - 35 \\[3ex] = 5(35) - 35 \\[3ex] = 140^\circ \\[3ex] \text{Obtuse }\angle BAD = 2 * \angle BED ...\text{central angle = twice the inscribed angle} \\[3ex] 140 = 2(2y + 10) \\[3ex] 140 = 4y + 20 \\[3ex] 4y = 140 - 20 \\[3ex] y = \dfrac{120}{4} \\[5ex] y = 30^\circ \\[5ex] (b.) \\[3ex] \underline{\text{Quadrilateral ABCD}} \\[3ex] \angle ABC + \angle BCA + \angle CDA + \angle DAB = 360^\circ ...\text{sum of the interior angles of a quadrilateral} \\[3ex] \angle ABC + [2(35) + 40] + 40 + [5(35) - 35] = 360 \\[3ex] \angle ABC + 110 + 40 + 140 = 360 \\[3ex] \angle ABC = 360 - 110 - 40 - 140 \\[3ex] \angle ABC = 70^\circ $
(5.) Number 5

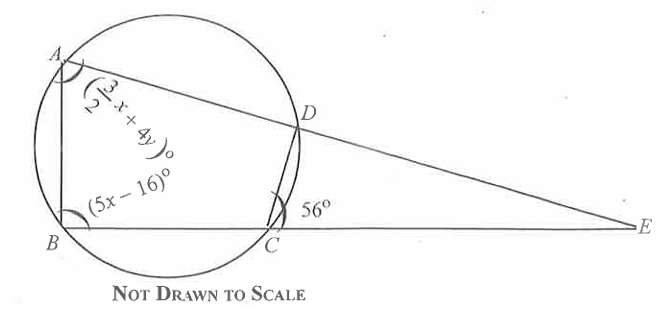

In the diagram, A, B, C, D are points on a circle.
ADE and BCE are straight lines.
$\angle DCE = 56^\circ$, $\angle ABE = (5x - 16)^\circ$ and $\angle BAE = \left(\dfrac{3}{2}x + 4y\right)^\circ$
If $\angle DCE : \angle CDE = 7 : 8$; find:
(a.) $\angle AEB$
(b.) the values of x and y


$ \angle DCE : \angle CDE = 7 : 8 \\[3ex] \dfrac{\angle DCE}{\angle CDE} = \dfrac{7}{8} \\[5ex] \dfrac{56}{\angle CDE} = \dfrac{7}{8} \\[5ex] 7 * \angle CDE = 56(8) \\[3ex] \angle CDE = \dfrac{56(8)}{7} \\[5ex] \angle CDE = 64^\circ \\[5ex] (a.) \\[3ex] \underline{\triangle CDE} \\[3ex] \angle DEC + \angle DCE + \angle CDE = 180^\circ ...\text{sum of angles in a triangle} \\[3ex] \angle DEC + 56 + 64 = 180 \\[3ex] \angle DEC = 180 - 56 - 64 \\[3ex] \angle DEC = 60^\circ \\[3ex] \angle AEB = \angle DEC = 60^\circ ...diagram \\[5ex] (b.) \\[3ex] \angle CDE = \angle ABE ...\text{exterior angle of a cyclic quad is equal to the interior opposite angle} \\[3ex] 64 = 5x - 16 \\[3ex] 5x - 16 = 64 \\[3ex] 5x = 64 + 16 \\[3ex] 5x = 80 \\[3ex] x = \dfrac{80}{5} \\[5ex] x = 16^\circ \\[5ex] Also: \\[3ex] \angle DCE = \angle BAE ...\text{exterior angle of a cyclic quad is equal to the interior opposite angle} \\[3ex] 56 = \dfrac{3}{2}x + 4y \\[5ex] 2(56) = 2\left(\dfrac{3x}{2}\right) + 2(4y) \\[5ex] 112 = 3x + 8y \\[3ex] 8y = 112 - 3x \\[3ex] y = \dfrac{112 - 3x}{8} \\[5ex] y = \dfrac{112 - 3(16)}{8} \\[5ex] y = 8^\circ $
(6.) Number 6

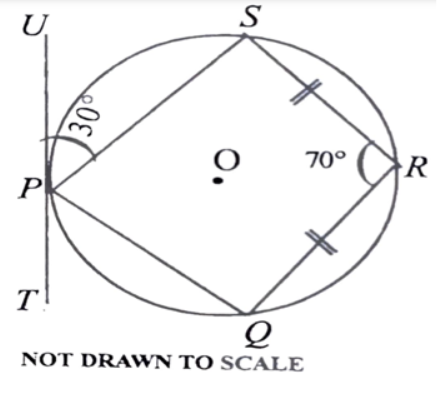

$\overline{TU}$ is a tangent to the circle PQRS at P.
$\angle SPU = 30^\circ$, $\angle QRS = 70^\circ$, and $|\overline{QR}| = |\overline{RS}|$.
Find:
(a.) $\angle QPT$
(b.) $\angle PSR$


$ \underline{\text{Cyclic Quadrilateral PQRS}} \\[3ex] \angle SPQ + \angle QRS = 180^\circ ...\text{interior opposite angles of a cyclic quad. are supplementary} \\[3ex] \angle SPQ + 70 = 180 \\[3ex] \angle SPQ = 180 - 70 \\[3ex] \angle SPQ = 110^\circ \\[5ex] (a.) \\[3ex] \angle SPU + \angle SPQ + \angle QPT = 180^\circ ...\text{sum of angles on a straight line} \\[3ex] 30 + 110 + \angle QPT = 180 \\[3ex] \angle QPT = 180 - 30 - 110 \\[3ex] \angle QPT = 40^\circ \\[3ex] $ To solve (b.), let us do some construction.

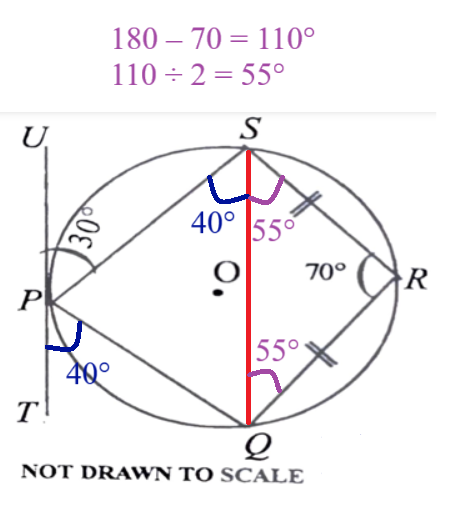

Use a line to join Point S to Point Q

Number 6

$ \angle QSP = \angle QPT = 40^\circ \\[3ex] ...\text{angle between Tangent TU and Chord PQ is equal to the angle in the alternate segment} \\[5ex] \underline{\triangle QRS} \\[3ex] \angle RSQ = \angle RQS = k ...\text{base angles of isosceles triangle} \\[3ex] \angle RSQ + \angle RQS + \angle QRS = 180^\circ ...\text{sum of interior angles of a triangle} \\[3ex] k + k + 70 = 180 \\[3ex] 2k = 180 - 70 \\[3ex] 2k = 110 \\[3ex] k = \dfrac{110}{2} \\[5ex] k = 55^\circ \\[3ex] \angle RSQ = \angle RQS = 55^\circ \\[5ex] (b.) \\[3ex] \angle PSR = \angle QSP + \angle RSQ ...\text{Diagram} \\[3ex] \angle PSR = 40 + 55 \\[3ex] \angle PSR = 95^\circ $
(7.) Number 7

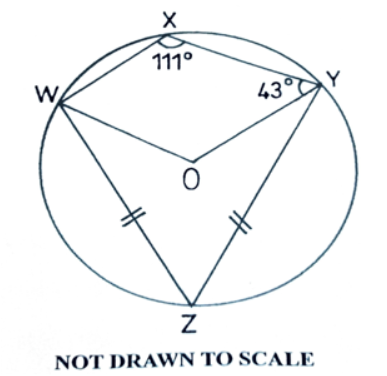

In the diagram, WXYZ are points on a circle centre O.
$\angle WXY = 111^\circ$, $\angle OYX = 43^\circ$ and $|\overline{WZ}| = |\overline{YZ}|$.
Calculate:
(a.) $\angle OWX$;
(b.) $\angle OYZ$


$ \underline{\text{Quadrilateral WXYZ}} \\[3ex] \text{Reflex }\angle WOY = 2 * \angle WXY ...\text{central angle = twice the inscribed angle} \\[3ex] = 2 * 111 \\[3ex] = 222^\circ \\[5ex] \text{Obtuse }\angle WOY + \text{Reflex }\angle WOY = 360^\circ ...\text{sum of angles at a point} \\[3ex] \text{Obtuse }\angle WOY + 222 = 360 \\[3ex] \text{Obtuse }\angle WOY = 360 - 222 \\[3ex] = 138^\circ \\[5ex] (a.) \\[3ex] \text{Obtuse }\angle WOY + \angle OWX + \angle WXY + \angle XYO = 360^\circ \\[3ex] ...\text{sum of the interior angles of a quadrilateral} \\[3ex] 138 + \angle OWX + 111 + 43 = 360 \\[3ex] \angle OWX = 360 - 138 - 111 - 43 \\[3ex] = 68^\circ \\[3ex] $ To solve for (b.), let us join the line from Point W to Point Y

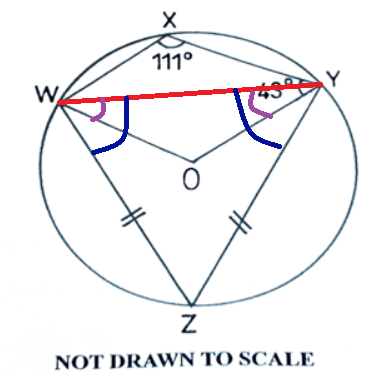

Number 7

$ \underline{\triangle WOY} \\[3ex] \angle OWY = \angle OYW = p ...\text{base angles of isosceles triangle} \\[3ex] \angle OWY + \angle OYW + \angle WOY = 180^\circ ...\text{sum of interior angles of a triangle} \\[3ex] p + p + 138 = 180 \\[3ex] 2p = 180 - 138 \\[3ex] 2p = 42 \\[3ex] p = \dfrac{42}{2} \\[5ex] p = 21 \\[3ex] \angle OWY = \angle OYW = 21^\circ \\[3ex] \angle WOY = 2 * \angle WZY ...\text{central angle = twice the inscribed angle} \\[3ex] 2 * \angle WZY = 138 \\[3ex] \angle WZY = \dfrac{138}{2} \\[5ex] \angle WZY = 69^\circ \\[5ex] \underline{\triangle WZY} \\[3ex] \angle ZWY = \angle ZYW = k ...\text{base angles of isosceles triangle }: |\overline{WZ}| = |\overline{YZ}| \\[3ex] \angle ZWY + \angle ZYW + \angle WZY = 180^\circ ...\text{sum of interior angles of a triangle} \\[3ex] k + k + 69 = 180 \\[3ex] 2k = 180 - 69 \\[3ex] k = \dfrac{111}{2} \\[5ex] k = 55.5 \\[3ex] \angle ZWY = \angle ZYW = 55.5^\circ \\[5ex] (b.) \\[3ex] \angle OYW + \angle OYZ = \angle ZYW ...\text{Diagram} \\[3ex] 21 + \angle OYZ = 55.5 \\[3ex] \angle OYZ = 55.5 - 21 \\[3ex] \angle OYZ = 34.5^\circ $
(8.) Number 8

In the diagram, PQRS is a circle.
$|\overline{PQ}| = |\overline{QS}|$, $\angle SPR = 26^\circ$ and the interior angles of $\triangle PQS$ are in the ratio 2 : 3 : 3.
Calculate:
(a.) $\angle PQR$
(b.) $\angle RPQ$
(c.) $\angle PRQ$


$ \text{interior angles of }\triangle PQS \\[3ex] \angle PQS : \angle QPS : \angle QSP \\[3ex] 2 : 3 : 3 ...\text{base angles of isosceles }\triangle:\; |\overline{PQ}| = |\overline{QS}| \\[3ex] \text{sum of ratios} = 2 + 3 + 3 = 8 \\[3ex] \angle PQS + \angle QPS + \angle QSP = 180^\circ ...\text{sum of interior angles of a triangle} \\[3ex] \implies \\[3ex] \angle PQS = \dfrac{2}{8} * 180 = 45^\circ \\[5ex] \angle QPS = \dfrac{3}{8} * 180 = 67.5^\circ \\[5ex] \angle QSP = \dfrac{3}{8} * 180 = 67.5^\circ \\[5ex] \angle SQR = \angle SPR = 26^\circ ...\text{angles in the same segment} \\[3ex] (a.) \\[3ex] \angle PQR = \angle PQS + \angle SQR...\text{Diagram} \\[3ex] = 45 + 26 \\[3ex] = 71^\circ \\[5ex] (c.) \angle PRQ = \angle QSP = 67.5^\circ ...\text{angles in the same segment} \\[5ex] (b.) \\[3ex] \underline{\triangle PRQ} \\[3ex] \angle RPQ + \angle PRQ + \angle PQR = 180^\circ ...\text{sum of interior angles of a triangle} \\[3ex] \angle RPQ + 67.5 + 71 = 180 \\[3ex] \angle RPQ = 180 - 67.5 - 71 \\[3ex] = 41.5^\circ $
(9.) Number 9

In the diagram, ABCD are points on the circle centre O.
If $|\overline{AB}| = |\overline{BC}|$ and $\angle ADC = 50^\circ$, find $\angle BAD$.


Let us draw a line to join point A to point C

Number 9

$ \underline{\text{Cyclic Quadrilateral ABCD}} \\[3ex] \angle ABC + \angle ADC = 180^\circ ...\text{interior opposite angles of a cyclic quad are supplementary} \\[3ex] \angle ABC + 50 = 180 \\[3ex] \angle ABC = 180 - 50 \\[3ex] \angle ABC = 130^\circ \\[5ex] \underline{\text{Isosceles Triangle ABC}}: |\overline{AB}| = |\overline{BC}| \\[3ex] \angle BAC = \angle BCA = p ...\text{base angles of isosceles triangle} \\[3ex] \angle BAC + \angle BCA + \angle ABC = 180^\circ ...\text{sum of the interior angles of a triangle} \\[3ex] p + p + 130 = 180 \\[3ex] 2p = 180 - 130 \\[3ex] 2p = 50 \\[3ex] p = \dfrac{50}{2} \\[5ex] p = 25 \\[3ex] \angle BAC = \angle BCA = 25^\circ \\[5ex] \angle ACD = 90^\circ ...\text{angle in a semicircle} \\[5ex] \underline{\text{\triangle CAD}} \\[3ex] \angle CAD + \angle ACD + \angle ADC = 180^\circ ...\text{sum of the interior angles of a triangle} \\[3ex] \angle CAD + 90 + 50 = 180 \\[3ex] \angle CAD = 180 - 90 - 50 \\[3ex] \angle CAD = 40^\circ \\[5ex] \angle BAD = \angle BAC + \angle CAD...\text{Diagram} \\[3ex] \angle BAD = 25 + 40 \\[3ex] \angle BAD = 65^\circ $
(10.) Number 10

In the diagram; O is the centre of the circle
|TS| = |SR|, ∠TPR = x°, ∠TQR = y°, ∠TOR = z° and ∠TSR = 118°
(i.) Find the relationship between x, y and z
(ii.) Calculate ∠STP


$ (i) \\[3ex] x = y... \text{angles in the same segment of a circle are congruent} \\[3ex] \angle TOP + z = 180^\circ... \text{sum of angles on a straight line} \\[3ex] \angle TOP = 180 - z \\[3ex] \angle PTO = \angle TPO = x ...\text{base angles of isosceles triangle } TOP \\[3ex] \underline{\triangle TOP} \\[3ex] \angle TPO + \angle PTO + \angle TOP = 180^\circ ...\text{sum of interior angles of a triangle} \\[3ex] x + x + (180 - z) = 180 \\[3ex] But\;\; x = y \\[3ex] \text{And we need a relationship between }x, y, z \\[3ex] x + y + 180 - z = 180 \\[3ex] x + y - z = 180 - 180 \\[3ex] x + y - z = 0 \\[3ex] x + y = 0 + z \\[3ex] x + y = z \\[3ex] (ii) \\[3ex] $ Construction: Draw the chord from point T to point R

Number 10

$ \angle STR = \angle SRT = p ...\text{base angles of isosceles triangle } STR \\[3ex] \angle STR + \angle SRT + \angle TSR = 180^\circ ...\text{sum of interior angles of the triangle} STR \\[3ex] p + p + 118 = 180 \\[3ex] 2p = 180 - 118 \\[3ex] 2p = 62 \\[3ex] p = \dfrac{62}{2} \\[5ex] p = 31 \\[3ex] \therefore \angle STR = 31^\circ \\[3ex] \angle PTR = 90^\circ ...\text{angle in a semicircle} \\[3ex] \angle STP = \angle STR + \angle PTR ...\text{Diagram} \\[3ex] \angle STP = 31 + 90 \\[3ex] \angle STP = 121^\circ $
(11.) Number 11

In the diagram, PQRS is a cyclic quadrilateral.
If |SR| = |RQ|, ∠SRP = 60° and ∠RPQ = 48°, find ∠PRQ


$ \angle QSR = 48^\circ ... \text{angles in the same segment of a circle are congruent} \\[3ex] \angle SQR = \angle QSR = 48^\circ ...\text{base angles of isosceles triangle } RSQ \\[3ex] \angle SRQ = \angle SRP + \angle PRQ ...\text{Diagram} \\[3ex] \angle SRQ + \angle QSR + \angle SQR = 180^\circ ...\text{sum of interior angles of the triangle} RSQ \\[3ex] \implies \\[3ex] (\angle SRP + \angle PRQ) + \angle QSR + \angle SQR = 180 \\[3ex] 60 + \angle PRQ + 48 + 48 = 180 \\[3ex] \angle PRQ + 156 = 180 \\[3ex] \angle PRQ = 180 - 156 \\[3ex] \angle PRQ = 24^\circ $
(12.) Number 12

In the diagram, O is the centre of the circle PRSTU and $\angle PTS = 58^\circ$.
Find:
(a.) $\angle POS$;
(b.) $\angle PRS$


$ (a.) \\[3ex] \text{Obtuse }\angle POS = 2 * \angle PTS...\text{angle at centre = twice angle at circumference} \\[3ex] = 2(58) \\[3ex] = 116^\circ \\[5ex] \text{Reflex }\angle POS + \text{Obtuse }\angle POS = 360^\circ ...\text{sum of angles at a point} \\[3ex] \text{Reflex }\angle POS + 116 = 360 \\[3ex] \text{Reflex }\angle POS = 360 - 116 \\[3ex] = 244^\circ \\[3ex] (b.) \\[3ex] \text{Reflex }\angle POS = 2 * \angle PRS...\text{angle at centre = twice angle at circumference} \\[3ex] 2 * \angle PRS = 244 \\[3ex] \angle PRS = \dfrac{244}{2} \\[5ex] = 122^\circ $
(13.) Number 13

In the diagram, O is the centre of the circle ABCDE, $|\overline{BC}| = |\overline{CD}|$ and $\angle BCD = 108^\circ$.
Find $\angle CDE$


Construction: Draw a line from point B to point D
Look at the different colors

Number 13

$ \underline{\text{Quadrilateral BECD}} \\[3ex] \angle E + \angle C = 180^\circ ...\text{interior opposite angles of a cyclic quad are supplementary} \\[3ex] \angle E + 108 = 180 \\[3ex] \angle E = 180 - 108 \\[3ex] = 72^\circ \\[5ex] \underline{\triangle DOE} \\[3ex] \angle OED = \angle E ...\text{diagram} \\[3ex] \angle ODE = \angle OED = 72^\circ ...\text{base angles of isosceles triangle} \\[5ex] \text{Reflex }\angle BOD = 2 * \angle BCD...\text{angle at centre = twice angle at circumference} \\[3ex] \text{Reflex }\angle BOD = 2(108) \\[3ex] = 216^\circ \\[3ex] \text{Obtuse }\angle BOD + \text{Reflex }\angle BOD = 360^\circ ...\text{sum of angles at a point} \\[3ex] \text{Obtuse }\angle BOD + 216 = 360 \\[3ex] \text{Obtuse }\angle BOD = 360 - 216 \\[3ex] = 144^\circ \\[5ex] \underline{\triangle BOD} \\[3ex] \angle OBD = \angle ODB = p ...\text{base angles of isosceles triangle} \\[3ex] \angle OBD + \angle ODB + \text{Obtuse }\angle BOD = 180^\circ ...\text{sum of the interior angles of a triangle} \\[3ex] p + p + 144 = 180 \\[3ex] 2p = 180 - 144 \\[3ex] p = \dfrac{36}{2} \\[5ex] p = 18 \\[3ex] \angle OBD = \angle ODB = 18^\circ \\[5ex] \underline{\triangle BCD} \\[3ex] \angle CBD = \angle CDB = k ...\text{base angles of isosceles triangle} \\[3ex] \angle CBD + \angle CDB + \angle BCD = 180^\circ ...\text{sum of the interior angles of a triangle} \\[3ex] k + k + 108 = 180 \\[3ex] 2k = 180 - 108 \\[3ex] k = \dfrac{72}{2} \\[5ex] k = 36 \\[3ex] \angle CBD = \angle CDB = 36^\circ \\[5ex] \angle CDE = \angle CDB + \angle ODB + \angle ODE ...\text{diagram} \\[3ex] = 36 + 18 + 72 \\[3ex] = 126^\circ $
(14.) Number 14

In the diagram, MNPQ is a circle with centre O.
$|MN| = |NP|$ and $\angle OMN = 50^\circ$.
Find:
(i.) $\angle MNP$;
(ii.) $\angle POQ$


$ \underline{\triangle MOP} \\[3ex] \angle OMP = \angle OPM = x^\circ ...\text{base angles of isosceles triangle} \\[5ex] \angle OMP + \angle OPM + \text{Obtuse }\angle MOP = 180^\circ ...\text{sum of the interior angles of a triangle} \\[3ex] x + x + \text{Obtuse }\angle MOP = 180 \\[3ex] \text{Obtuse }\angle MOP = 180 - 2x \\[3ex] \text{Obtuse }\angle MOP + \text{Reflex }\angle MOP = 360^\circ ...\text{sum of angles at a point} \\[3ex] (180 - 2x) + \text{Reflex }\angle MOP = 360 \\[3ex] \text{Reflex }\angle MOP = 360 - (180 - 2x) \\[3ex] = 360 - 180 + 2x \\[3ex] = 180 + 2x \\[5ex] \underline{\triangle MNP} \\[3ex] \angle NMP = \angle NPM = y^\circ ...\text{base angles of isosceles triangle} \\[5ex] \angle NMP + \angle NPM + \angle MNP = 180^\circ ...\text{sum of the interior angles of a triangle} \\[3ex] y + y + \angle MNP = 180 \\[3ex] \angle MNP = 180 - 2y \\[5ex] \text{Reflex }\angle MOP = 2 * \angle MNP ...\text{angle at centre = twice angle at circumference} \\[3ex] 180 + 2x = 2(180 - 2y) \\[3ex] 2(90 + x) = 2(180 - 2y) \\[3ex] 90 + x = 180 - 2y \\[3ex] x + 2y = 180 - 90 \\[3ex] x + 2y = 90...eqn.(1) \\[5ex] \angle NMP + \angle OMP = \angle OMN ...\text{Diagram} \\[3ex] y + x = 50^\circ \\[3ex] x + y = 50...eqn.(2) \\[5ex] eqn.(1) - eqn.(2) \implies \\[3ex] 2y - y = 90 - 50 \\[3ex] y = 40^\circ...eqn.(3) \\[3ex] \text{Substitute for y in eqn.(2)} \\[3ex] x + 40 = 50 \\[3ex] x = 50 - 40 \\[3ex] x = 10^\circ \\[3ex] (i.) \\[3ex] \angle MNP = 180 - 2y \\[3ex] = 180 - 2(40) \\[3ex] = 100^\circ \\[3ex] (ii.) \\[3ex] \angle POQ = 2 * \angle OMP ...\text{angle at centre = twice angle at circumference} \\[3ex] = 2 * x \\[3ex] = 2(10) \\[3ex] = 20^\circ $
(15.) Number 15

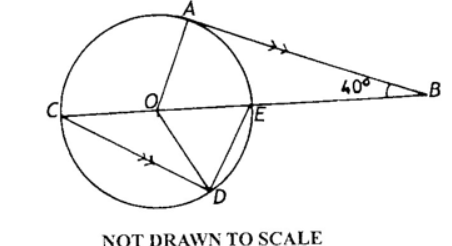

In the diagram, $\overline{AB}$ is a tangent to the circle with centre O and COB is a straight line.
If $\overline{CD} || \overline{AB}$ and $\angle ABE = 40^\circ$, find $\angle ODE$


$ \angle OBA = \angle ABE = 40^\circ ...\text{Diagram} \\[3ex] \underline{\text{Parallel Lines AB and CD}} \\[3ex] \angle OCD = \angle OBA = 40^\circ ...\text{alternate interior angles are congruent} \\[5ex] \underline{\triangle COD} \\[3ex] \angle ODC = \angle OCD = 40^\circ ...\text{base angles of isosceles triangle} \\[5ex] \underline{\triangle CED} \\[3ex] \angle CDE = 90^\circ ...\text{angle in a semicircle} \\[5ex] \angle ODC + \angle ODE = \angle CDE ...\text{Diagram} \\[3ex] 40 + \angle ODE = 90 \\[3ex] \angle ODE = 90 - 40 \\[3ex] = 50^\circ $
(16.) Number 16

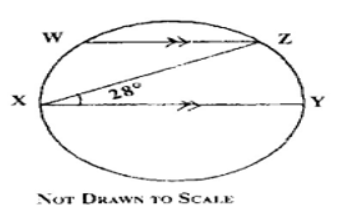

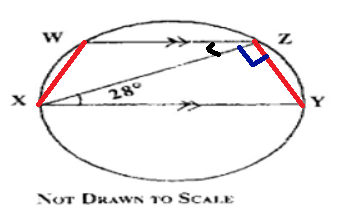

In the diagram, $\overline{XY}$ is the diameter of the circle WXYZ, $\overline{XY} || \overline{WZ}$ and $\angle ZXY = 28^\circ$.
Find $\angle XWZ$


Constructions:
(1.) Draw a line from Point X to Point W
(2.) Draw a line from Point Y to Point Z

Number 16

$ \underline{\text{Parallel Lines WZ and XY}} \\[3ex] \angle XZW = \angle ZXY = 28^\circ ...\text{alternate interior angles are congruent} \\[5ex] \underline{\triangle XZY} \\[3ex] \angle XZY = 90^\circ ...\text{angle in a semicircle} \\[5ex] \underline{\text{Diagram}} \\[3ex] \angle WXY = \angle WXZ + \angle ZXY \\[3ex] \angle WZY = \angle XZW + \angle XZY \\[5ex] \underline{\text{Cyclic Quadrilateral WZYX}} \\[3ex] \angle WXY + \angle WZY = 180^\circ ...\text{interior opposite angles of a cyclic quad. are supplementary} \\[3ex] \angle WXZ + 28 + 28 + 90 = 180 \\[3ex] \angle WXZ = 180 - 28 - 28 - 90 \\[3ex] = 34^\circ \\[5ex] \underline{\triangle XWZ} \\[3ex] \angle XWZ + \angle WXZ + \angle XZW = 180^\circ ...\text{sum of interior angles of a triangle} \\[3ex] \angle XWZ + 34 + 28 = 180 \\[3ex] \angle XWZ = 180 - 34 - 28 \\[3ex] = 118^\circ $
(17.) Number 17

In the diagram, O is the centre of circle ABCD such that $\angle AOB = 98^\circ$, $\angle DBA = 68^\circ$ and $\angle BDC = 47^\circ$.
Find:
(i.) $\angle CBD$;
(ii.) $\angle DCB$.


$ \angle AOB = 2 * \angle ADB ...\text{angle at centre = twice angle at circumference} \\[3ex] 2 * \angle ADB = 98 \\[3ex] \angle ADB = \dfrac{98}{2} \\[5ex] = 49^\circ \\[5ex] \underline{\text{Diagram}} \\[3ex] \angle ADC = \angle ADB + \angle BDC \\[3ex] \angle CBA = \angle CBD + \angle DBA \\[5ex] (i.) \\[3ex] \underline{\text{Cyclic Quadrilateral ABCD}} \\[3ex] \angle CBA + \angle ADC = 180^\circ ...\text{interior opposite angles of a cyclic quad. are supplementary} \\[3ex] \angle CBD + 68 + 49 + 47 = 180 \\[3ex] \angle CBD = 180 - 68 - 49 - 47 \\[3ex] = 16^\circ \\[5ex] (ii.) \\[3ex] \underline{\triangle BDC} \\[3ex] \angle BDC + \angle DCB + \angle CBD = 180^\circ ...\text{sum of interior angles of a triangle} \\[3ex] 47 + \angle DCB + 16 = 180 \\[3ex] \angle DCB = 180 - 47 - 16 \\[3ex] = 117^\circ $
(18.) Number 18

In the diagram, RSTU are points on a circle such that $\angle STU = 124^\circ$ and $\angle QUR = 31^\circ$.
Find $\angle RQU$.


$ \underline{\text{Cyclic Quadrilateral RSTU}} \\[3ex] \angle QRU = \angle STU = 124^\circ ...\text{exterior angle of a cyclic quad. is congruent to the interior opposite angle} \\[5ex] \underline{\triangle QRU} \\[3ex] \angle RQU + \angle QRU + \angle QUR = 180^\circ ...\text{sum of interior angles of a triangle} \\[3ex] \angle RQU + 124 + 31 = 180 \\[3ex] \angle RQU = 180 - 124 - 31 \\[3ex] = 25^\circ $
